🧩 Azure Storage Table

The Azure Storage Table data source connector allows you to fetch data from the

• Azure Table storage or the
• Azure Cosmos DB Table API.

If you want to use

• the Cosmos DB Mongo DB API, use the MongoDB data source connector.
• the Cosmos DB SQL API, use the CosmosDB data source connector.

Configuration

Create a new configuration of the Azure Storage Table connector.

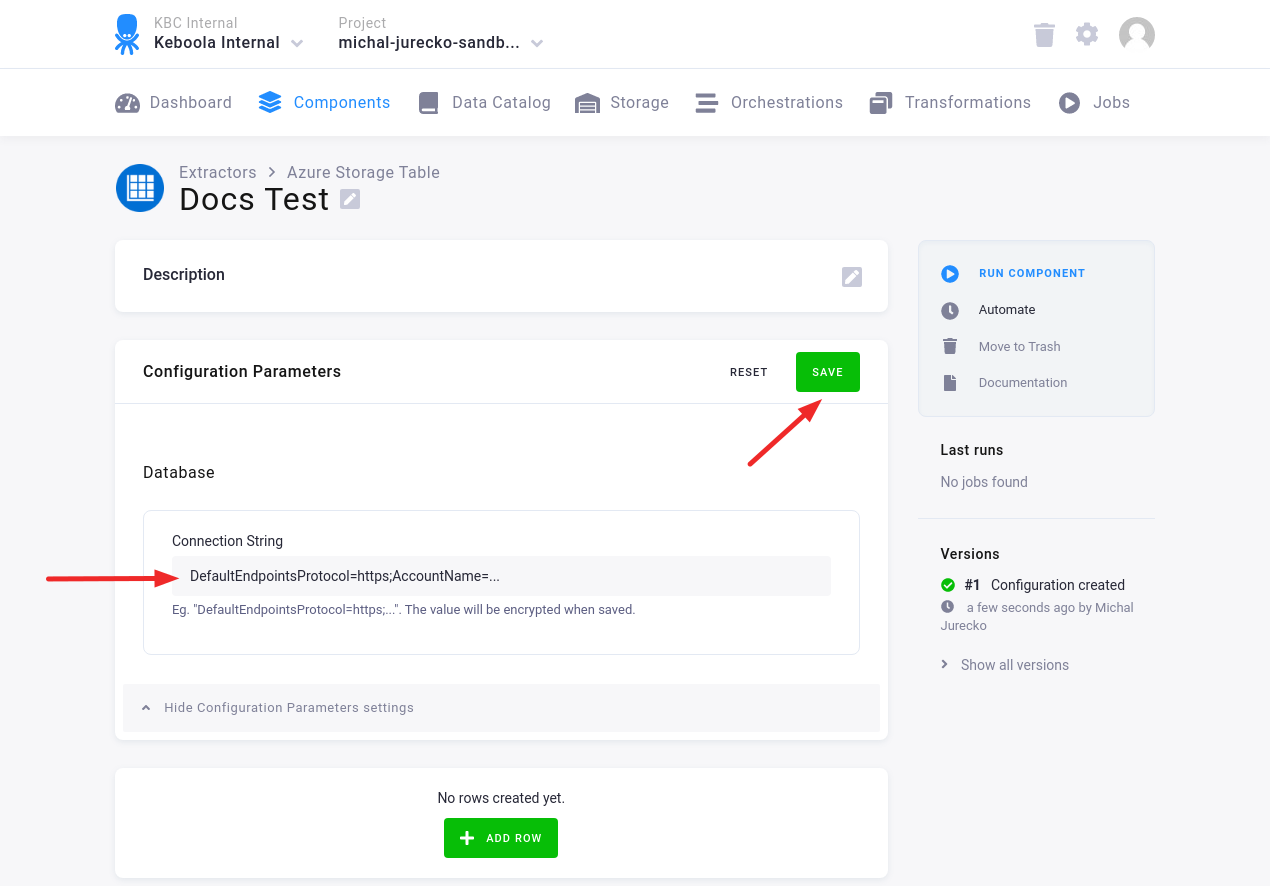

Fill in the Connection String. Then click Save.

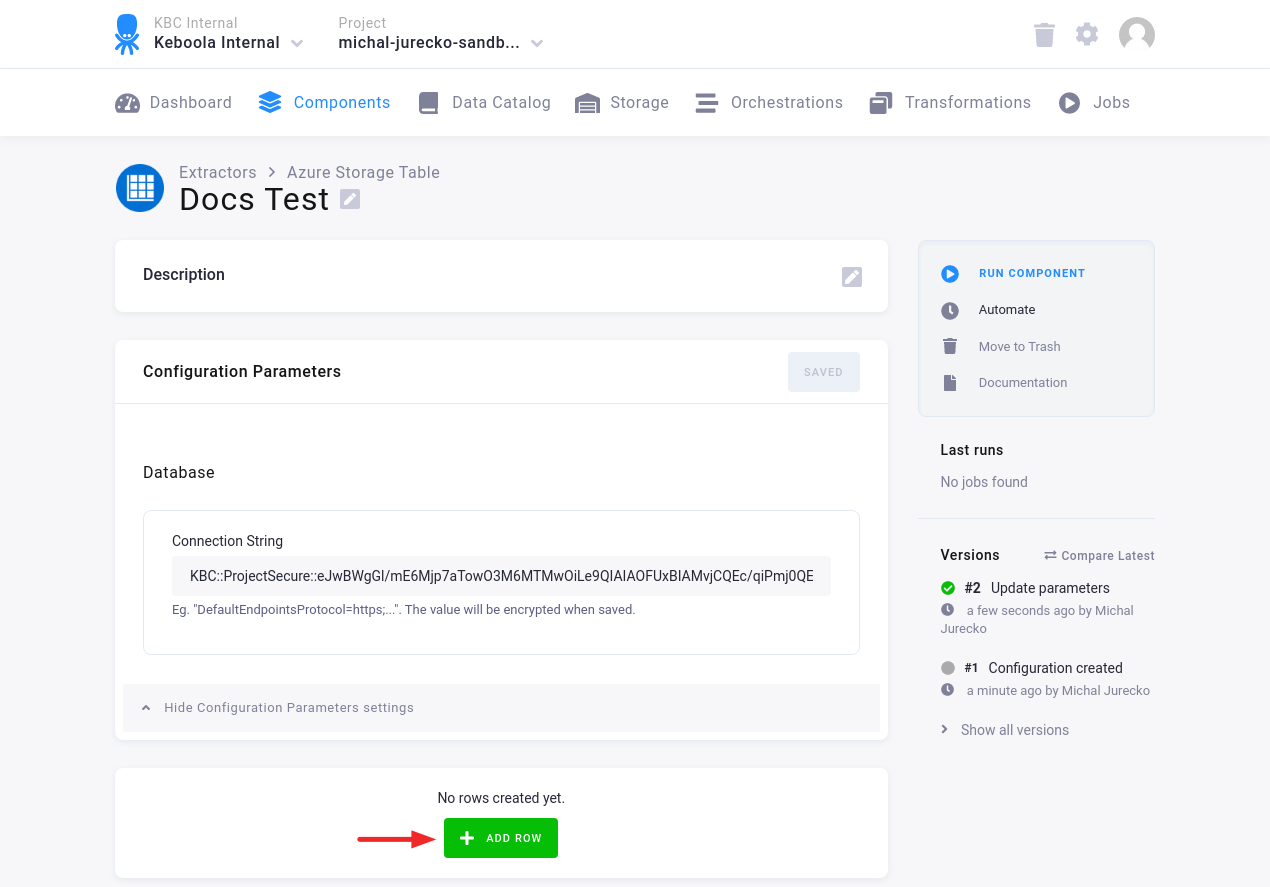

Click Add Row to add one or more configuration rows.

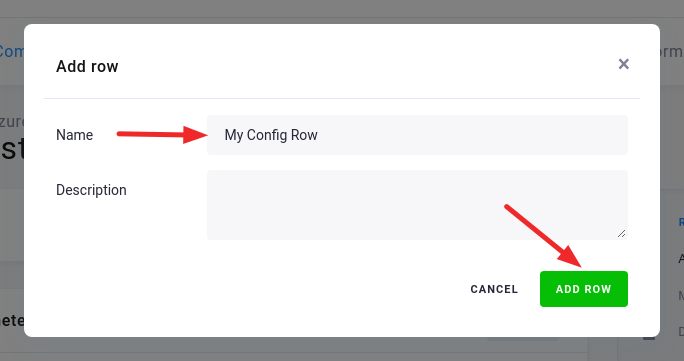

Fill in the Name, and, optionally, the Description. Then click Add Row.

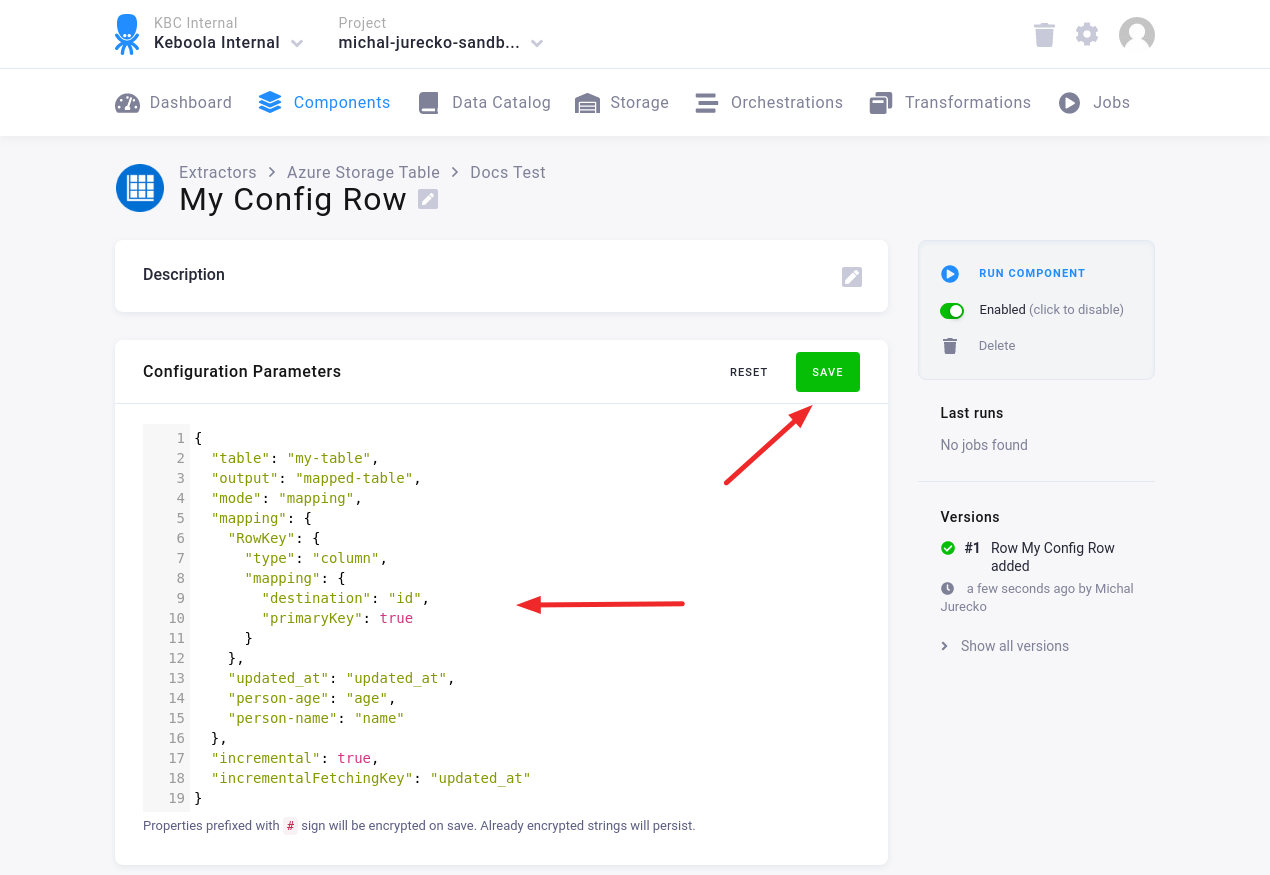

In the Configuration Row, fill in the Configuration Parameters. Then click Save.

Configuration Parameters

• table: string (required); the name of the input table in the Table storage
• output: string (required); the name of the output CSV file
• maxTries: integer (optional); the max number of retries if an error occurs; the default is 5
• incremental: boolean (optional); enables Incremental Loading; the default is false
• incrementalFetchingKey: string (optional); the name of the key for incremental fetching
• mode: enum (optional)
  • mapping (default)
    • Row is exported using specified mapping.
  • raw
    • Row is exported as plain JSON strings.
    • Table will contain PartitionKey, RowKey and data columns.
• mapping: string; required for mode = mapping
  • It is used to map the row to one or more tables.
  • The same format is used as in the MongoDB - configure-mapping.
  • See examples in the MongoDB - Mapping Examples.
  • For the details see the keboola/php-csvmap library.

By default, the data source connector exports all rows and columns. It can be adjusted using the following settings:

• select: string (optional); e.g., PartitionKey, RowKey, Name, Age
  • For raw mode, PartitionKey and RowKey fields must be present in the query results.
• limit: integer (optional); the maximum number of exported rows; e.g., 500
• filter: string (optional); OData query $filter; e.g., RowKey ge '2' and age gt 17

Examples

Raw mode — full load:

{
  "table": "my-table",
  "output": "output-table",
  "mode": "raw"
}

Mapping mode — full load:

{
  "table": "my-table",
  "output": "output-table",
  "mode": "mapping",
  "mapping": {
    "RowKey": {
      "type": "column",
      "mapping": {
        "destination": "rowKey",
        "primaryKey": true
      }
    },
    "updated_at": "updated_at",
    "business_name": "name",
    "result": "result"
  }
}

Raw mode — incremental load:

{
  "table": "my-table",
  "output": "output-table",
  "mode": "raw",
  "incremental": true,
  "incrementalFetchingKey": "updated_at"
}

Mapping mode — incremental load:

{
  "table": "my-table",
  "output": "output-table",
  "mode": "mapping",
  "mapping": {
    "RowKey": {
      "type": "column",
      "mapping": {
        "destination": "rowKey",
        "primaryKey": true
      }
    },
    "updated_at": "updated_at",
    "business_name": "name",
    "result": "result"
  },
  "incremental": true,
  "incrementalFetchingKey": "updated_at"
}

Raw mode — custom filter:

{
  "table": "my-table",
  "output": "output-table",
  "mode": "raw",
  "filter": "RowKey ge '2' and age gt 17"
}
